Cazaux LOBE Low Speed Processing Pump
Wide flow range from 1000L up to 100,000L depending on the model
- Multifunction lobular pump in alimentary nitrile
- Very slow rotation speed (max. 500 rpm): delicate with the product
- Pump housing in 316L stainless steel
- Robust
- Transfer of small solid particles
- Low oxygen dissolution
- Self aspiration: 8 meters
- Electronic regulator
- Very silent
- High pressure (up to 10 bar according to the model) and temperature resistant (-10°C, 90°C)
- Hygienic: easy cleaning
Sizes
- Lobe 100 range 1,400 L/h – 15,000 L/h

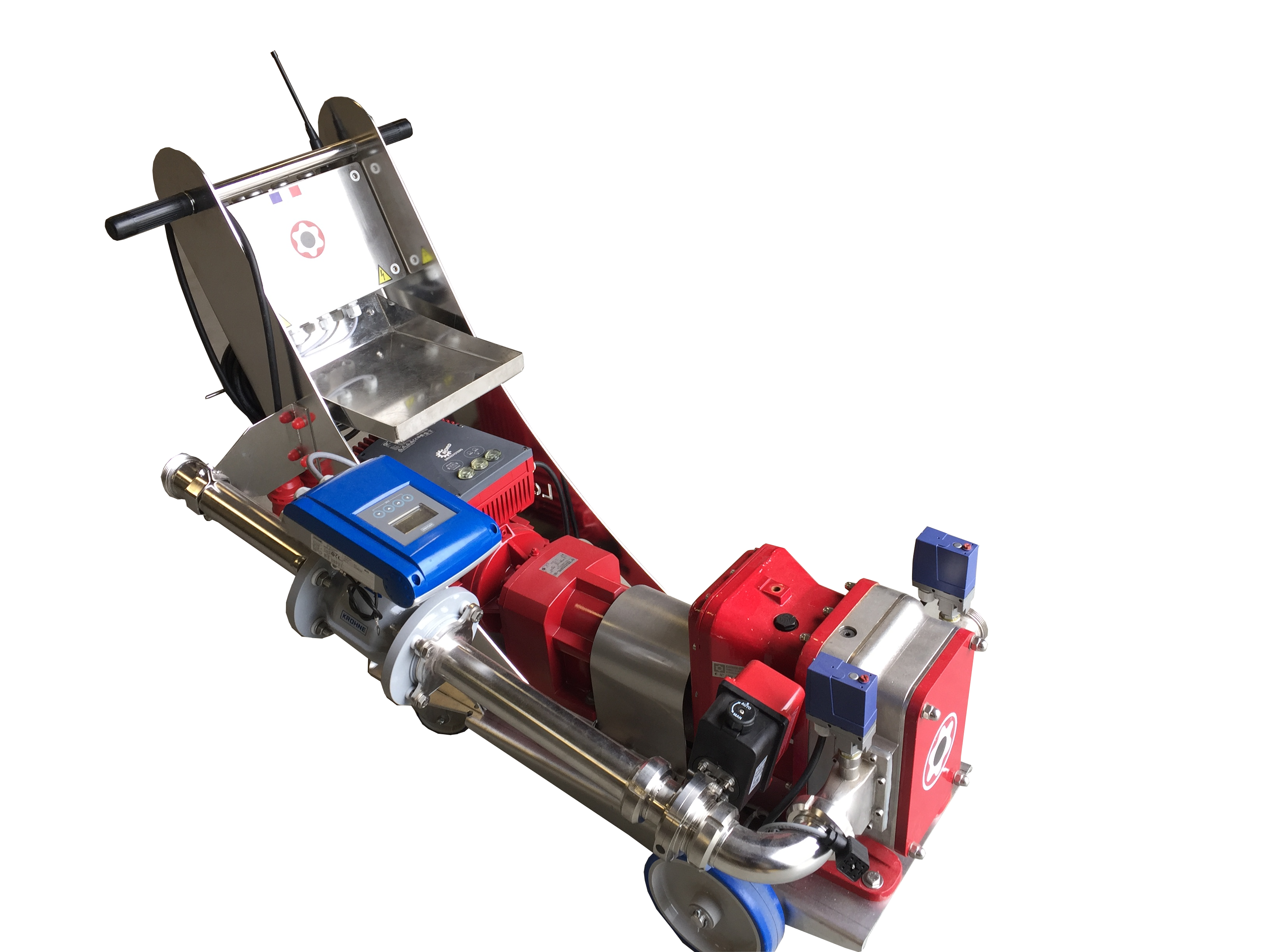

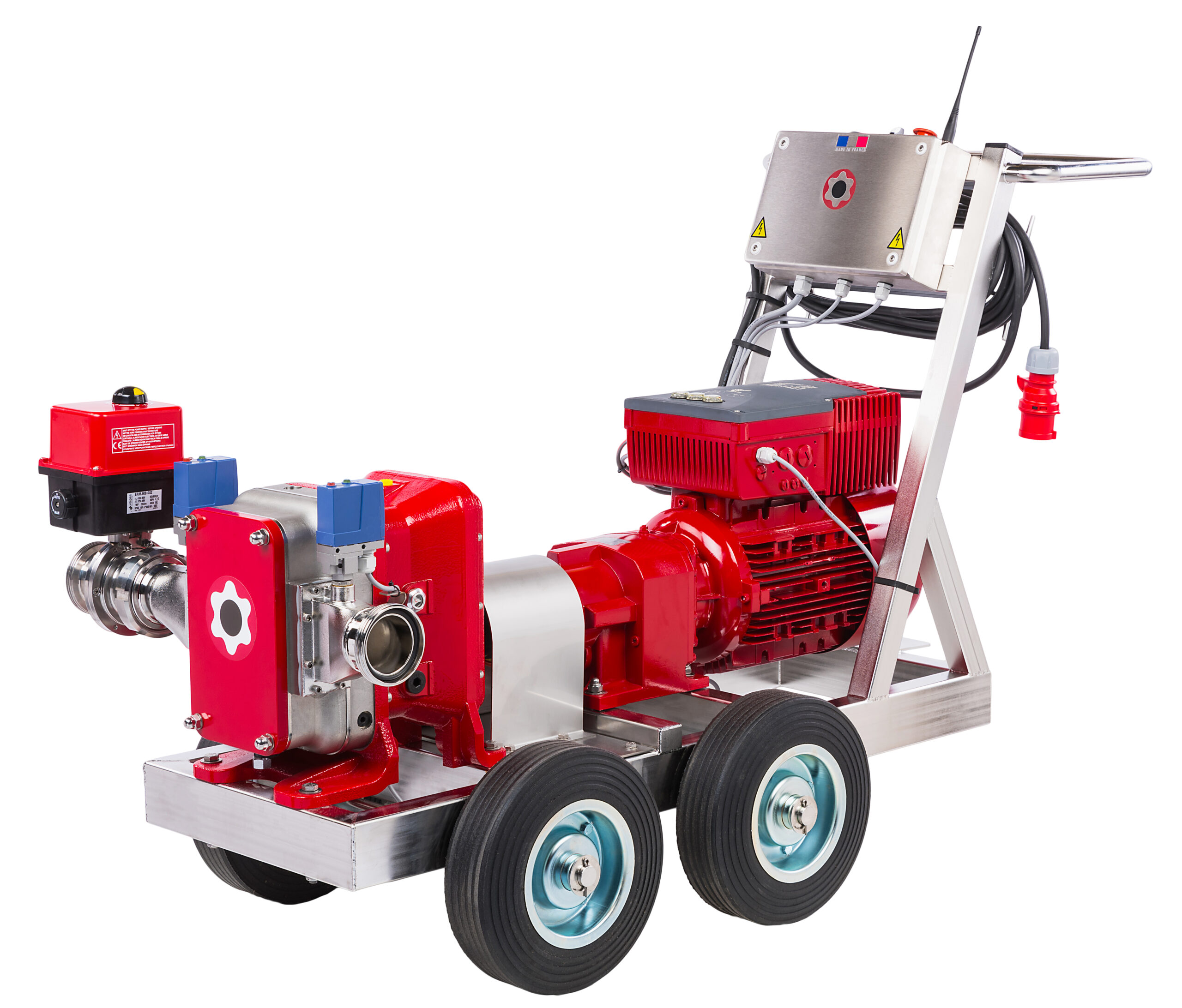

- Lobe 200 range 1,500 L/h – 24,000 L/h

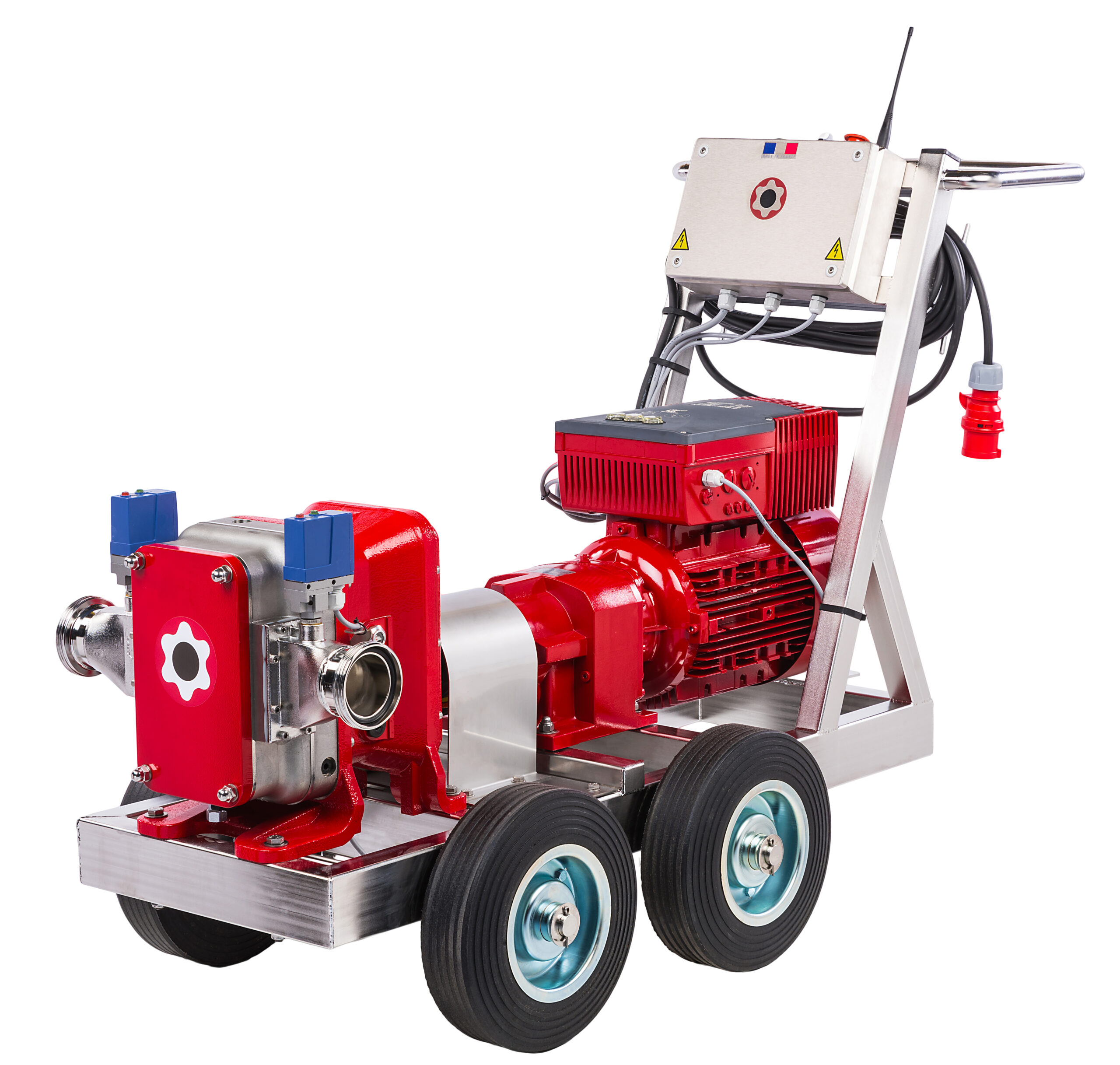

- Lobe 300 range 3,000 L/h – 34,000 L/h ( suitable as must pump)
- Lobe 450 range 3,000 L/h – 45,000 L/h ( suitable as must pump & high speed transfer)

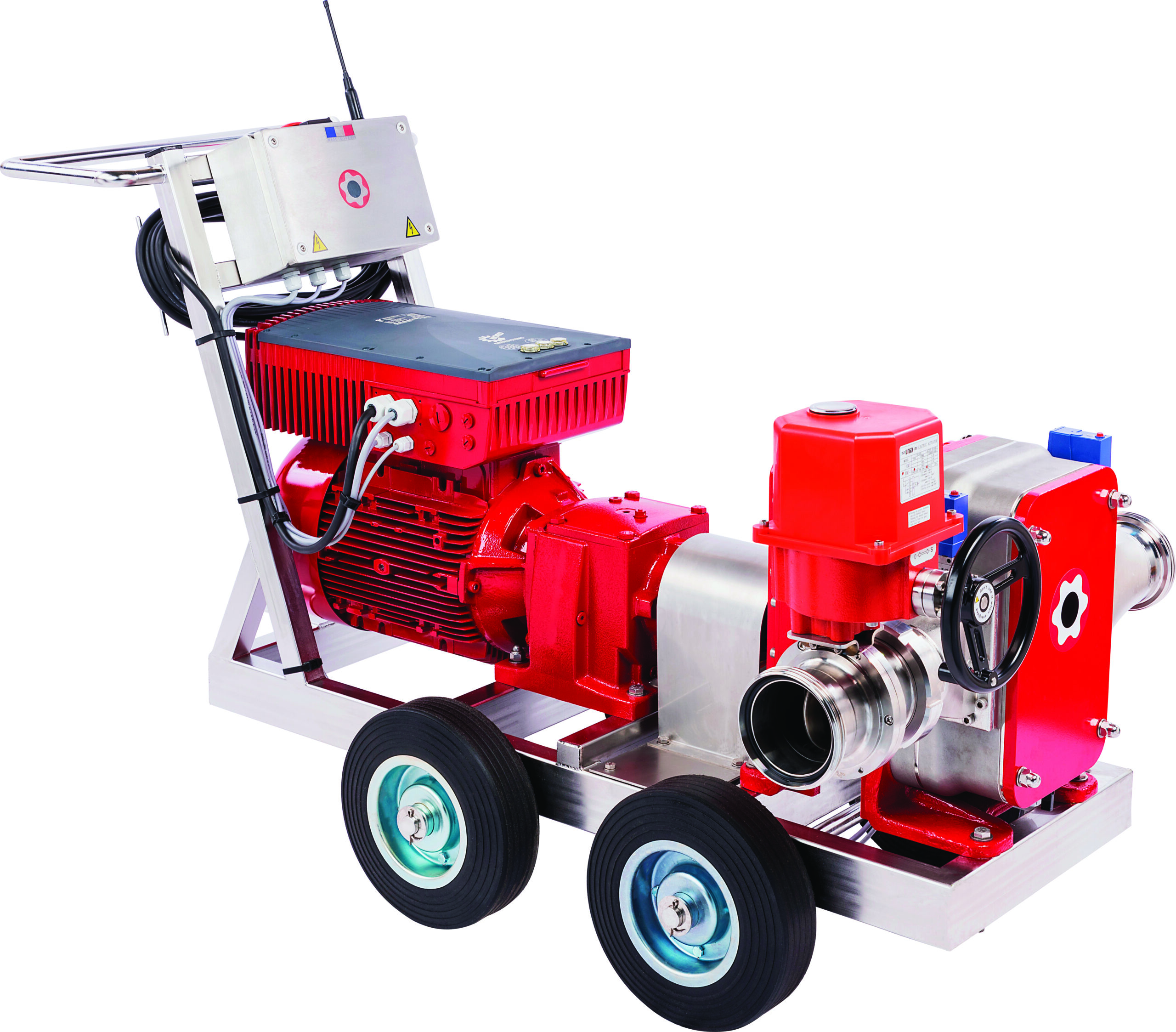

- Lobe 600 range 6,000 L/h – 66,000 L/h ( suitable as must pump & high speed transfer)

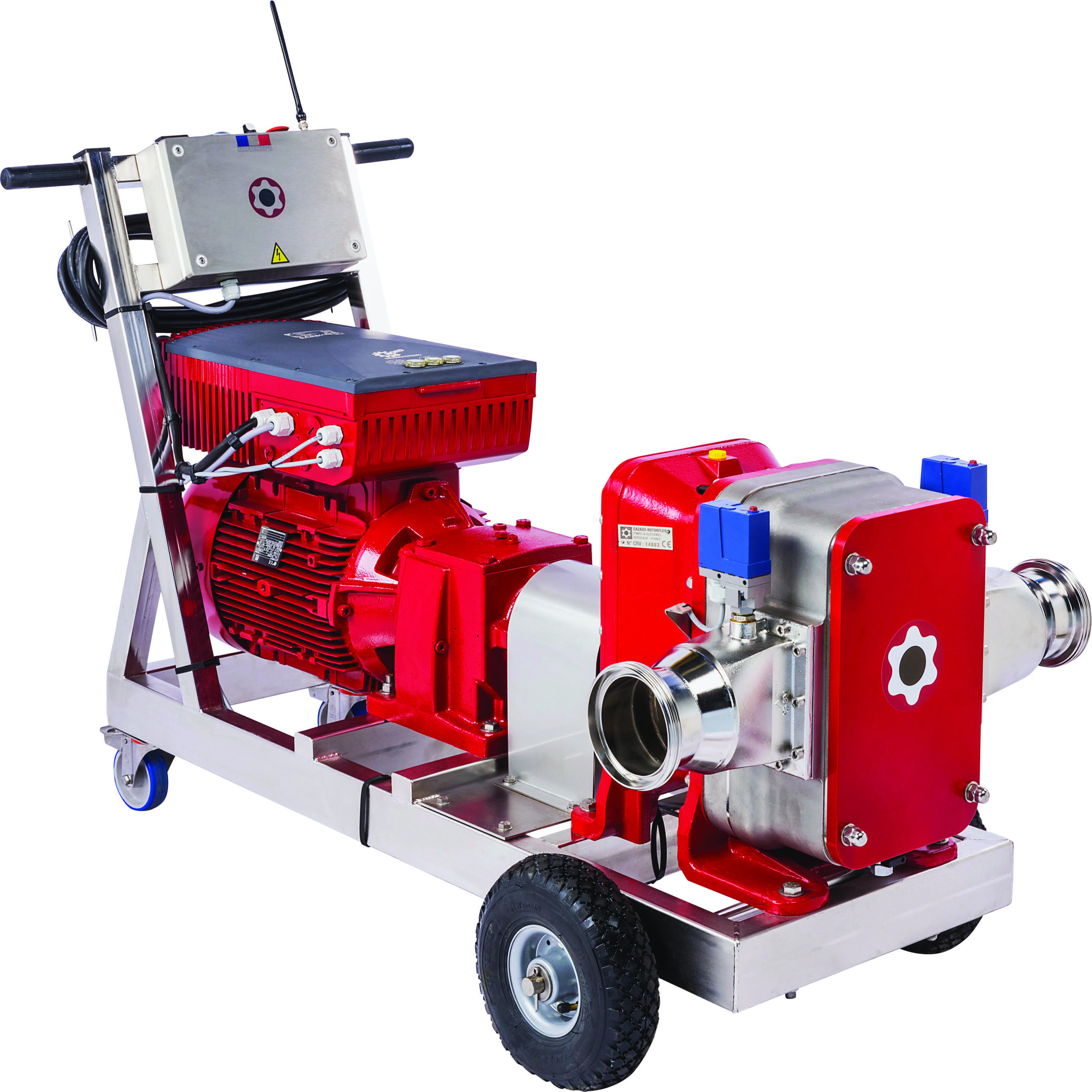

- Lobe 1,000 range 8,000 L/h – 110,000 L/h ( suitable as must pump & high speed transfer)
Options
- Cable or remote control with flow display
- Pressure regulator
- Pressure switch for barrel filling
- Integrated electromagnetic flowmeter
- Tactil display
- Motorised or pneumatic valve
- Atex (contact us)
Use
- All transfers: from the reception of destemmed grapes to wine bottling
