Citrus Juicer

This industrial Pro-fruit citrus juicer is designed to optimise the juice extraction process for a wide range of citrus fruits, including oranges, tangerines, grapefruits, limes, and lemons.

A specialized configuration is also available for processing pomegranates.

Capacity : 450 to 950 L/h

The key takeaway is that larger citrus fruit result in significantly higher juice production.

• Small Citrus (Calibre 9-11): Using Kit 9, the line processes about 150 fruits/min, yielding approximately 361 litres of juice per hour.
• Medium Citrus (Calibre 5-8): With Kit 8, the rate is about 134 fruits/min, but the yield increases to approximately 458 litres per hour.
• Large Citrus (Calibre 2-4): Using Kit 7, the line processes about 117 fruits/min but produces the highest yield, approximately 936 litres of juice per hour.

Key Features and Technical Specifications

Wide Fruit Compatibility
Capable of processing all standard citrus varieties (oranges, tangerines, grapefruits, limes, lemons), with an optional configuration for pomegranates.

High Juice Output
Delivers a high juice production capacity of 450 to 950 litres per hour, handling up to 150 fruits per minute.

Flexible Fruit Sizing
Processes fruits with diameters ranging from 55 mm to 100 mm, ensuring adaptability to various fruit sizes.

Robust Stainless Steel Construction
All product-contact surfaces are constructed from stainless steel or food-grade materials.

Integrated Feeding System

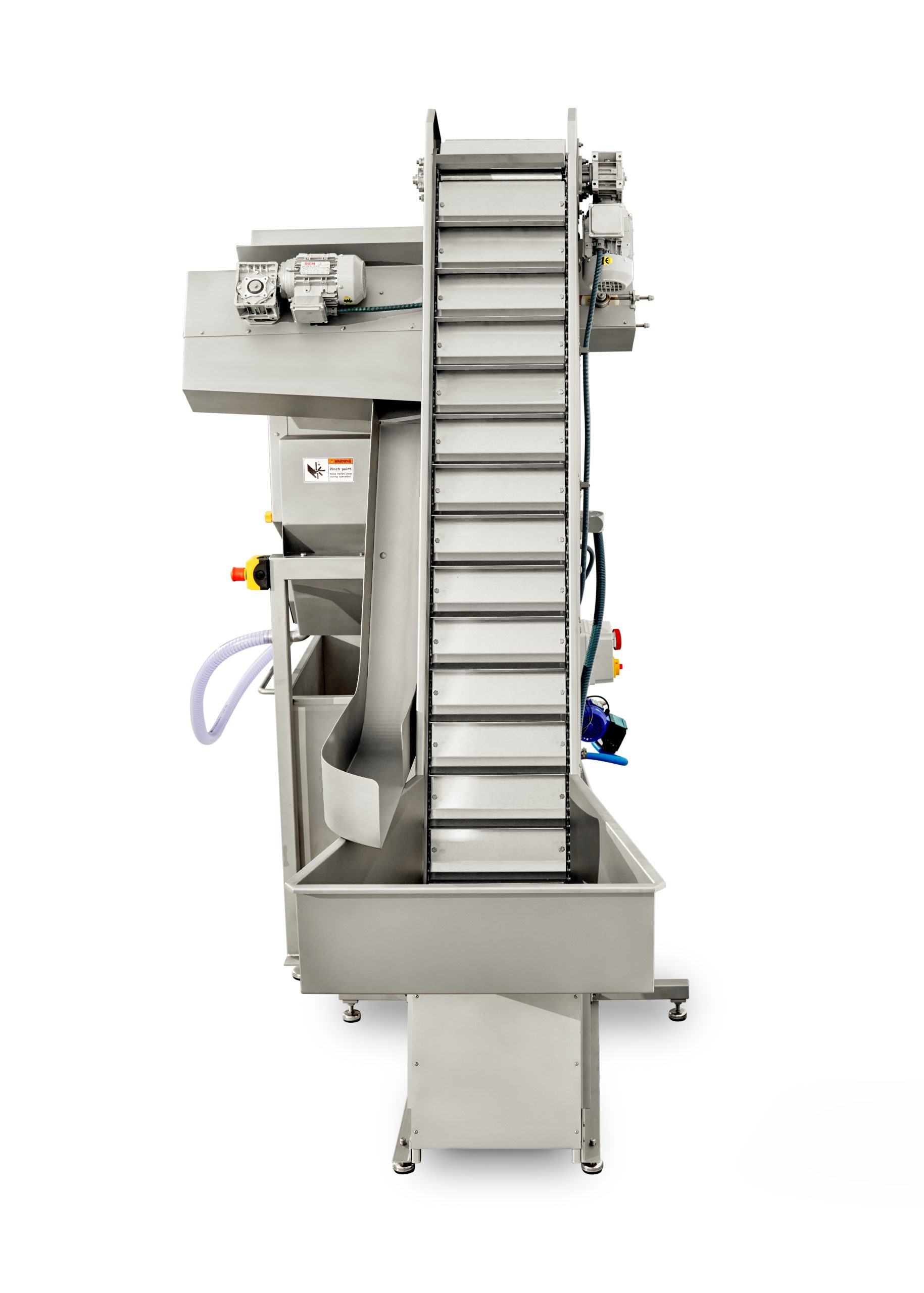

Features a stainless steel elevator with variable speed control for efficient fruit transport, along with a 40 kg capacity hopper for continuous operation without frequent refilling.

Advanced Juice Extraction Technology

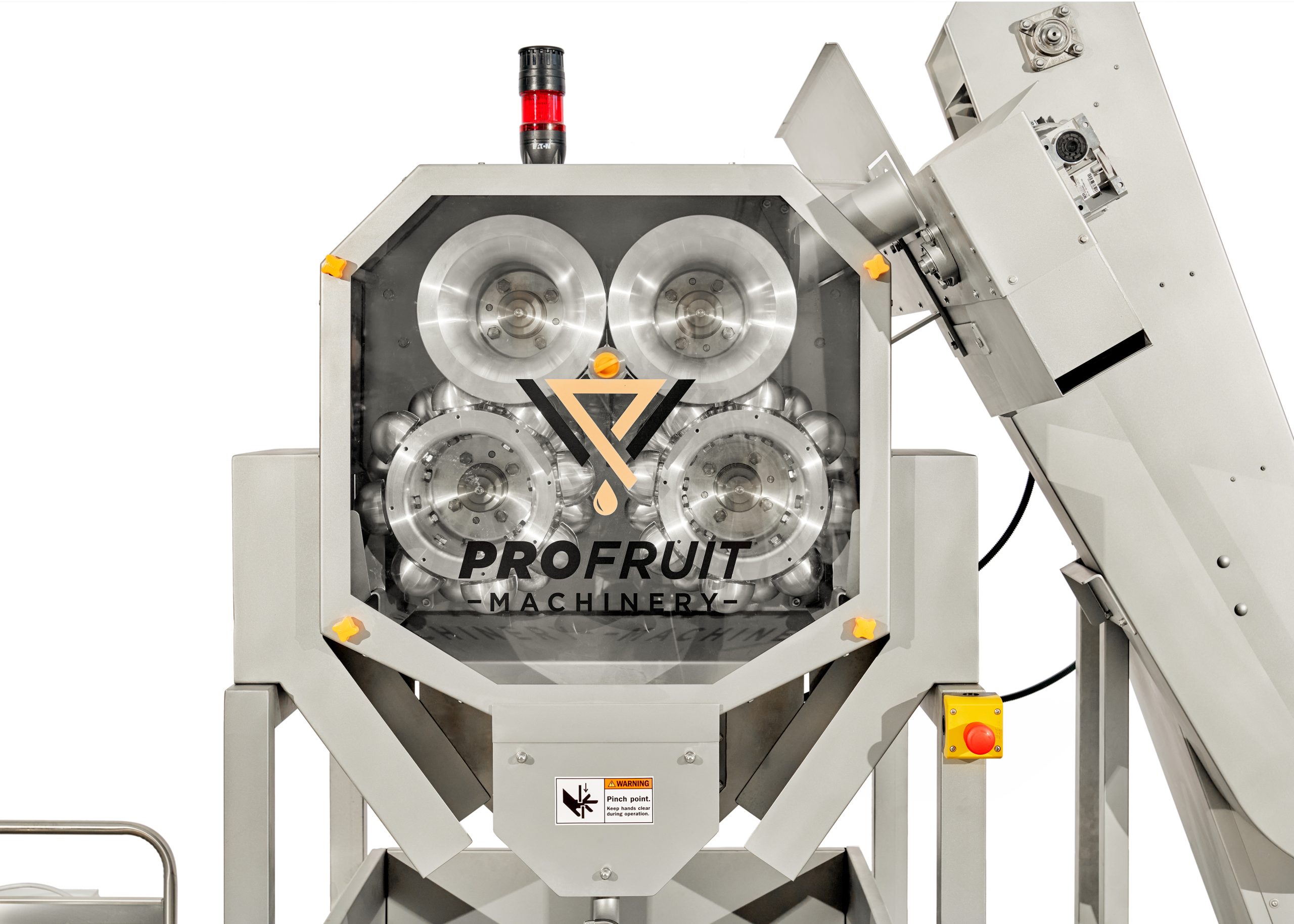

Equipped with a high-performance juicer head that extracts juice with minimal essential oil content, preserving the natural flavor and quality of the juice.

Efficient Pulp and Seed Separation
Includes a continuous rotary filter system that effectively separates pulp and seeds. Waste is collected in a dedicated stainless steel drawer, making cleaning and maintenance easy.

Seamless System Integration
Designed to integrate effortlessly with existing or new ProFruit processing lines, including washing, pasteurization, and filling equipment.

This industrial citrus juicer is a high-efficiency, reliable solution for processors seeking maximum juice quality and performance—fully aligned with the professional standards of ProFruit machinery.
