Concrete Wine Vats & Tanks

Affordable, high quality and customisable, Australian made natural concrete wine vats. Work directly with third generation local Australian speciality casters who have over 15 years complex concrete water storage experience and offer lead times (from order to vineyard delivery) not too different to European transit shipping time frames.

Bespoke your vats through an extensive range of colours, finishes, insulation and other options.

Grapeworks and our casting partner are here to work with you to produce vats that will meet both desired fermentation outcomes and also a cellar door statement that will be a highlight of your winery.

Colours – 12 different colour options

Volume – 2,000L

Weight – 2,800kg

Structure – High strength structural concrete, steel mesh

Finishes

• Extensive colour range (as shown)
• Personalised colours
• Sandblasted
• Embossing (some limitations apply)
• Rendered
• Polished
• Painted
• Tiled
• Cladded

Included as standard

• 400mm Dia Stainless Steel lid

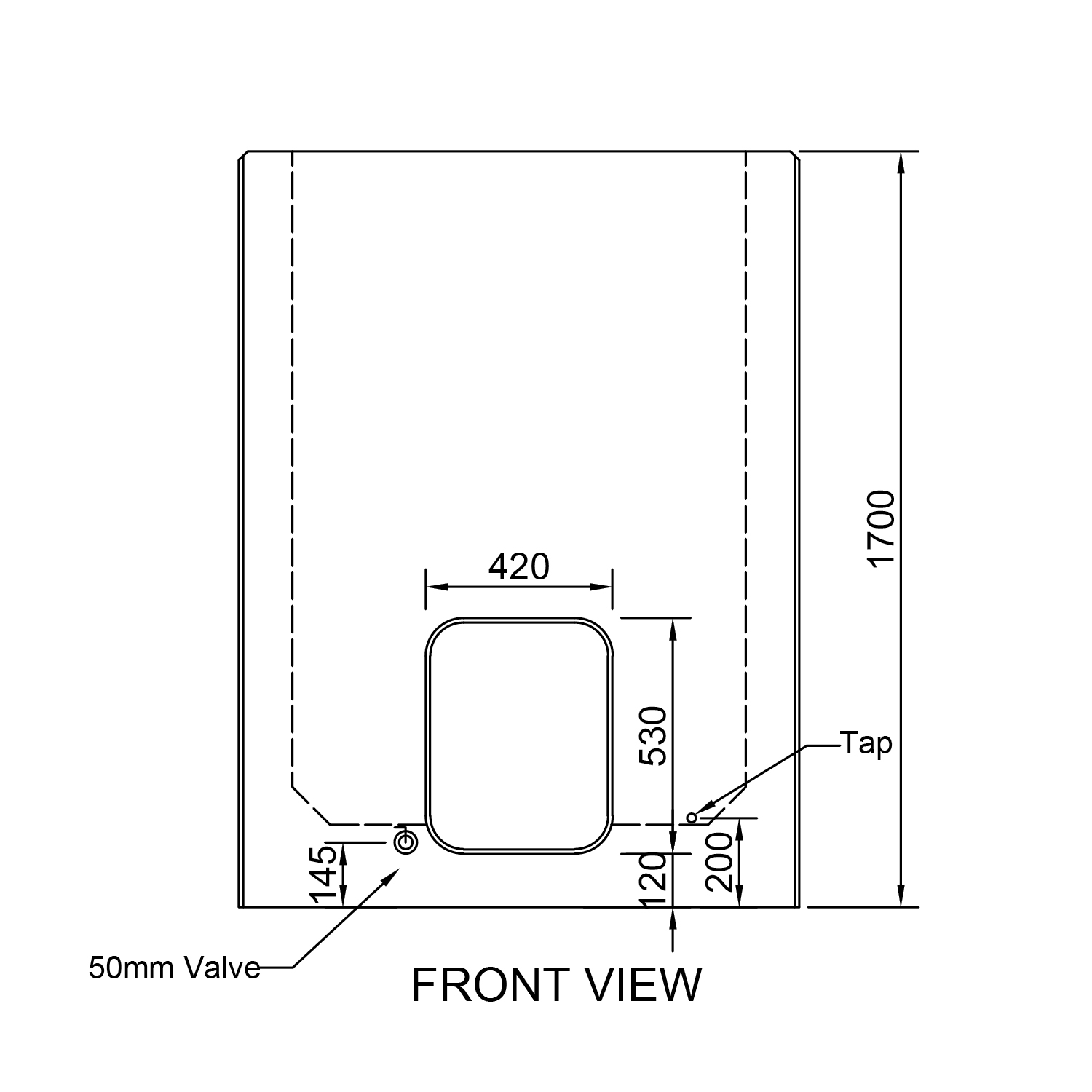

• Large mash door, 431mm x 56 mm SS dual locking
• Bottom & racking outlets 50mm & valve BSM
• 2 finishing type options – Bubbles 1-2mm or 1-4mm

Customise with these options:

• Fluid driven heating coils for temperature control
• Fill height (¾ full etc)
• Concrete plinths/platforms to raise level
  of your vat
• Natural high thermal/lower carbon fibre additives –
  wool
• Top BSM outlet instead of door
