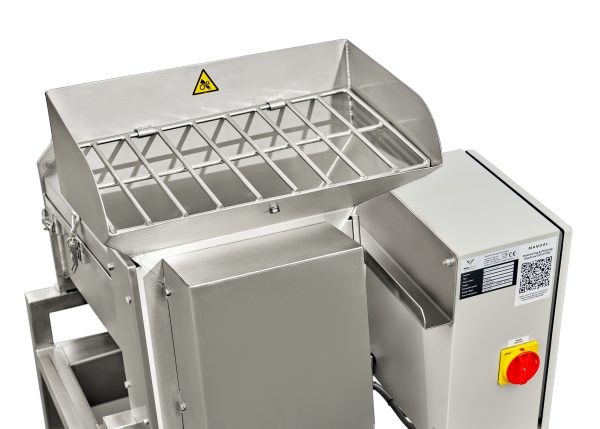

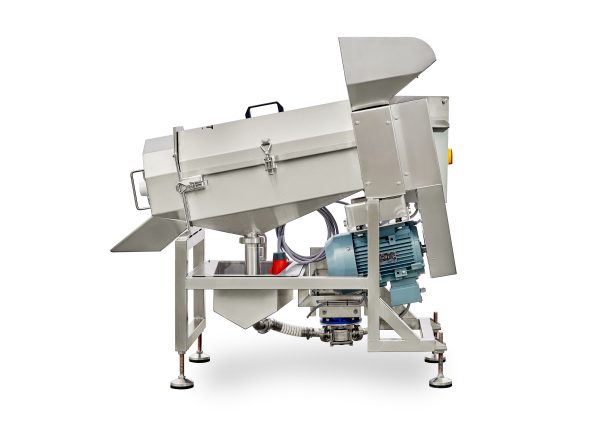

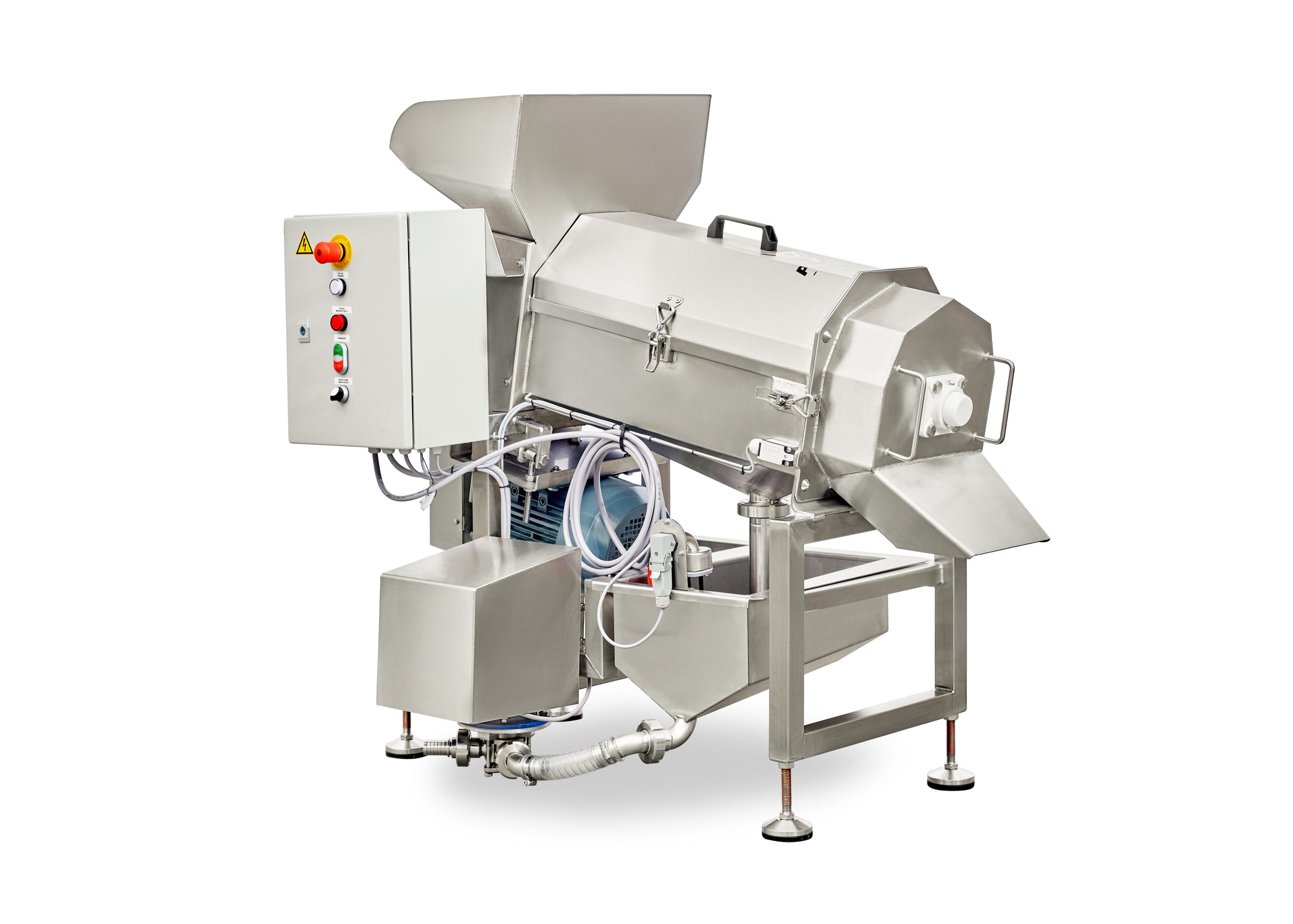

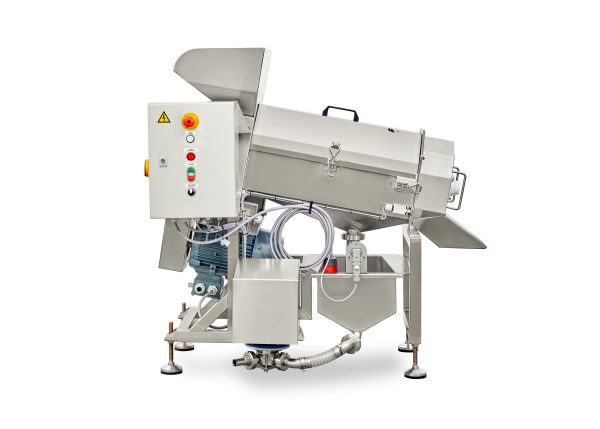

Destoning & Pulping Machine DESTONE 500

Pro-fruit DESTONE 500 is designed to separate fruit and berry pulp from stone, skin and seeds, and produce clean pulp & puree.

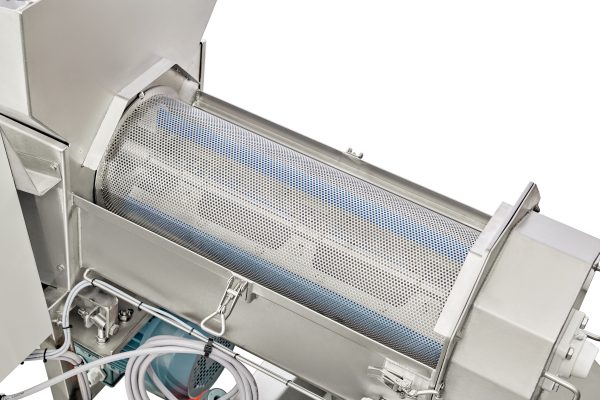

Destoning pulping machine consists of a screw, which is mounted in the middle, and sieve, which is attached to the sides of the machine. After fruits or berries are loaded into machine, the screw spins the products and presses them through the sieve, this way producing clear puree without any stones, seeds or peel. Stones, seeds and peel leave the machine through a special outlet. The puree comes out of machine through a separate outlet.

Output: 500 kg/h

(other sizes available, 1,000 & 2,000 kg/h)

• With right modifications machine is suitable to process blueberries, blackcurrants, raspberries, strawberries, plums, apricots, peaches, mangoes, pomegranates, passion fruits, tomatoes, etc.
• For further processing and thinner puree, the pulping process can be repeated with another sieve or puree can be further loaded into the pneumatic press. Puree can also be further loaded into the belt press or rotational filter.
• Machine comes with one integrated sieve. You can order additional sieves according to your needs.
• Destoning & pulping machine functions automatically.
• Machine is easy to clean with no closed or inaccessible spaces, all parts are easy to assemble.
• All product-contact surfaces are constructed from stainless steel or food-grade materials and has pivoting wheels.

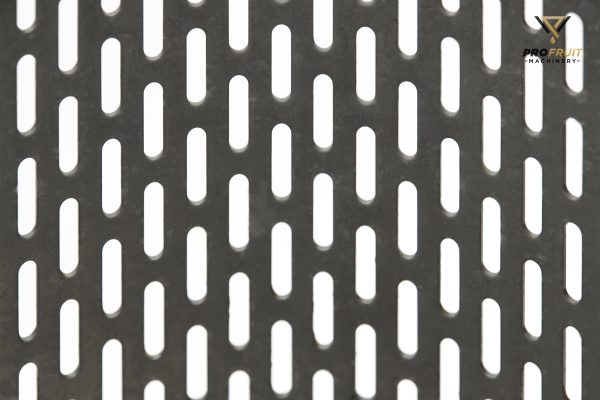

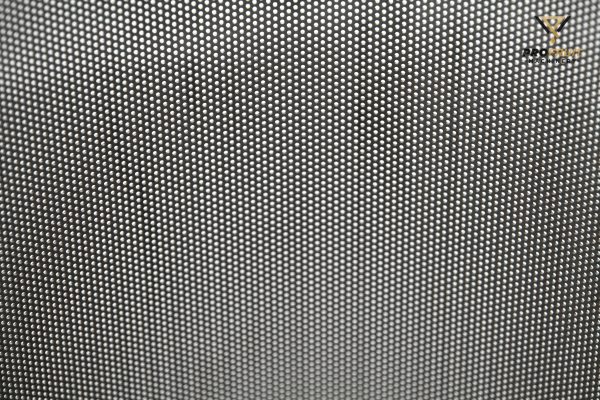

Available sieve options:

• With 0,6-2 mm holes – for pressing puree from berries with small seeds or for repetitive pulping process of already destoned pulp.
• With 3 mm holes – to get a puree from crushed pome fruits, such as apples, pears, guavas, etc.
• With 3 or 5 mm holes – for cherries and small plums.
• With 8 mm holes – for bigger plums, apricots, peaches.
• With 10 mm holes – for mangoes and similar fruits.
