Pall Oenoflow™ XL-E Wine Clarification Systems

Crossflow Microfiltration System

Efficient, automated clarification for small to mid-sized wineries, fruit juice and other non-carbonated beverages

The Oenoflow XL-E system delivers reliable, single-step post‑fermentation clarification without filter aids, centrifugation, or impact on wine quality. Using Pall’s high‑area PVDF hollow fiber membranes, it provides high productivity, low operating costs, and gentle processing that preserves flavor and aroma.

Key Advantages

• Cost-efficient performance: High-flow, long-life PVDF membranes reduce maintenance and replacement costs.
• Compact and automated: Fully automated operation with pre‑programmed cycles reduces labor, downtime, and footprint.
• Consistent quality: Transparent modules and automatic flow control ensure clarity and protect wine integrity.

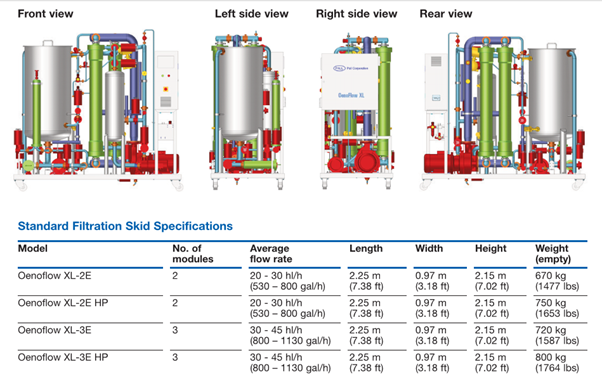

• Flexible design: Modular two‑ or three‑element system with onboard concentration tank minimizes wine transfers.
• Durable construction: Engineered for repeated cleaning and robust operation with stainless steel frame and components.

System Highlights

• Back‑pulse function for increased throughput
• Touchscreen PLC with cycle control
• Integrated filtration, pump, and cleaning unit
• Optional nitrogen purge and external transfer pump
