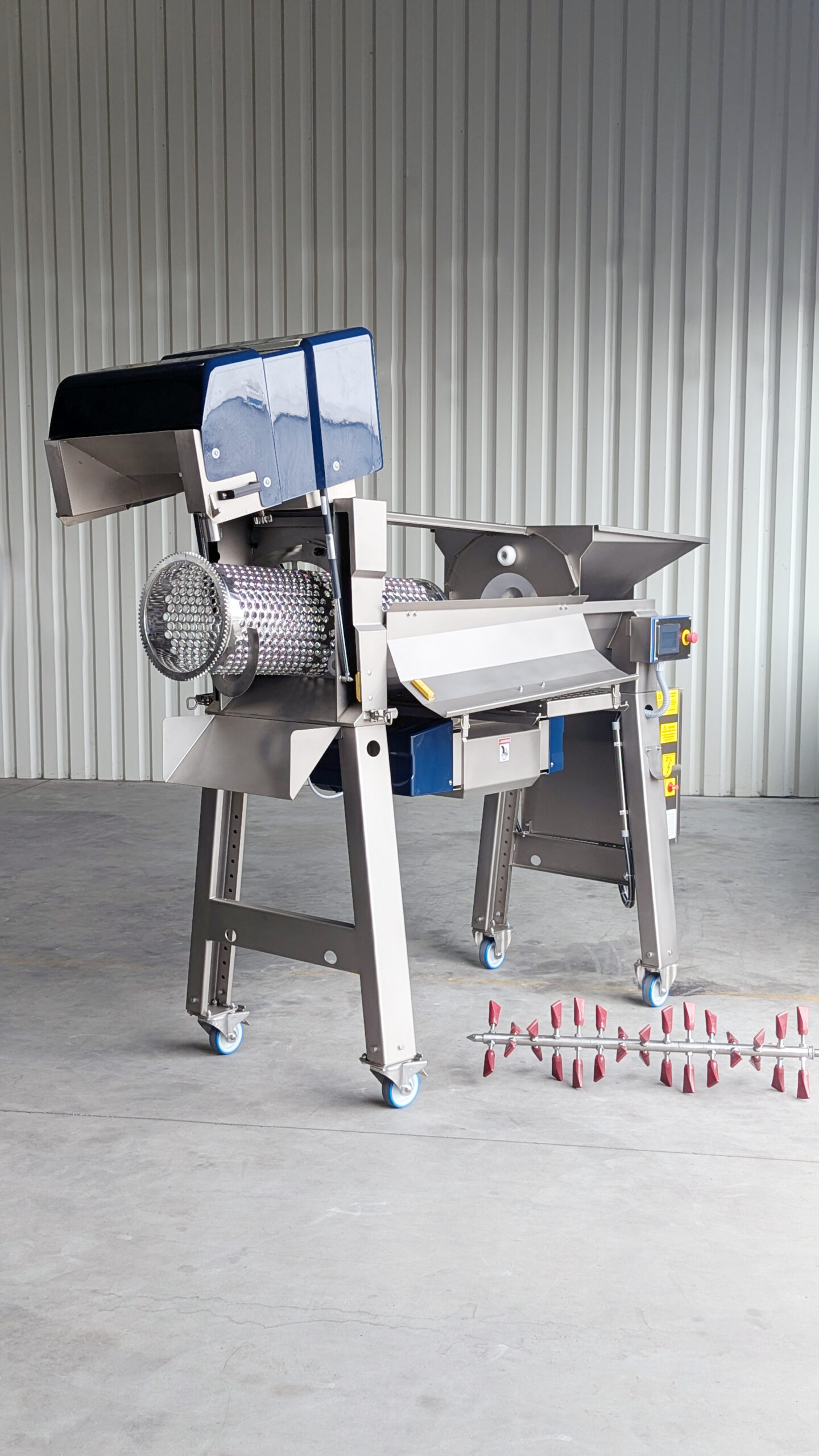

Basic model with feet with a ground clearance of 850mm
Stainless steel constuction
Options
Height adjustable stainless steel frame for a ground clearance of 850 – 1300 mm, or 1300-1600mm
Movable crusher ( can be by-passed)
Cleaning nozzles

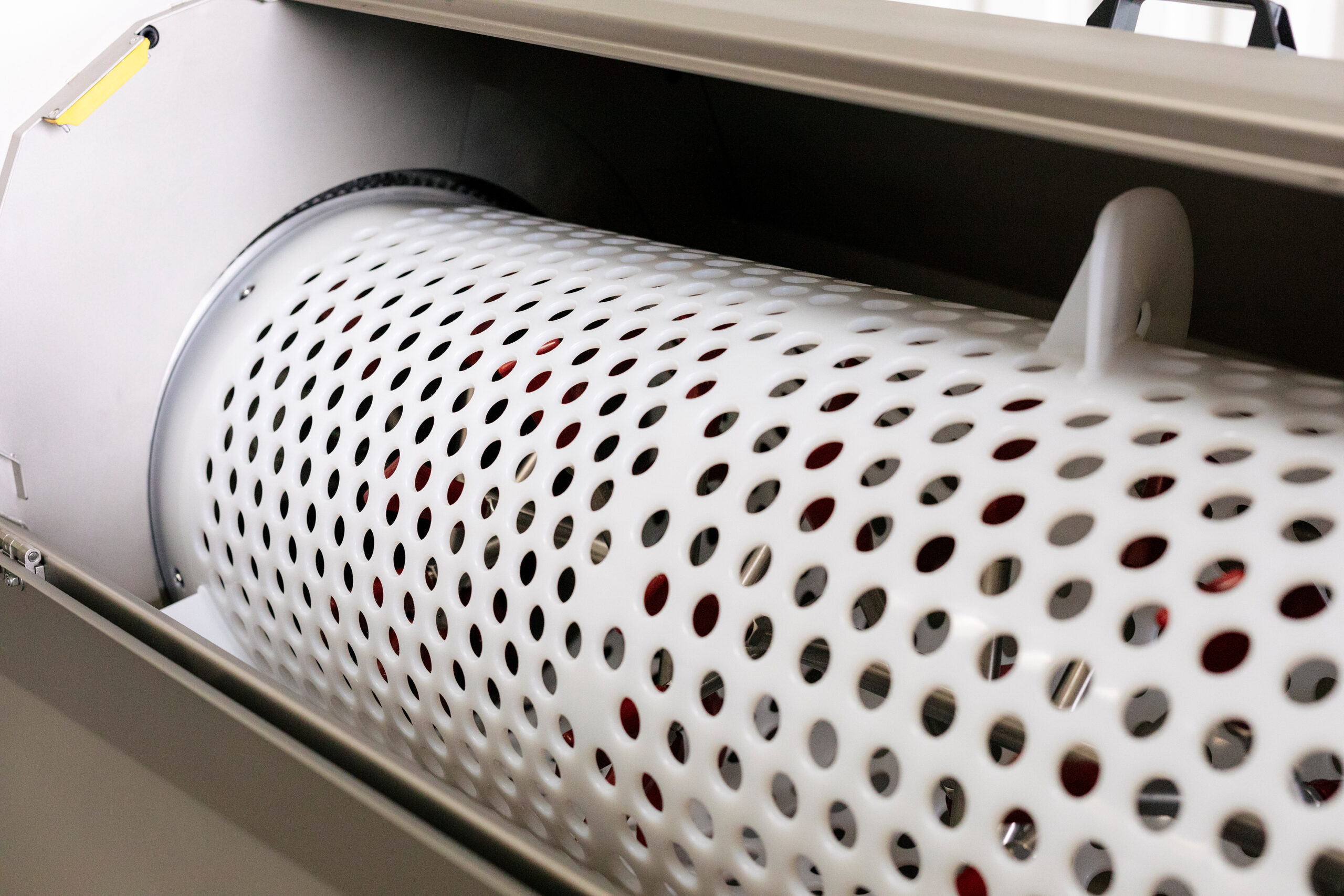

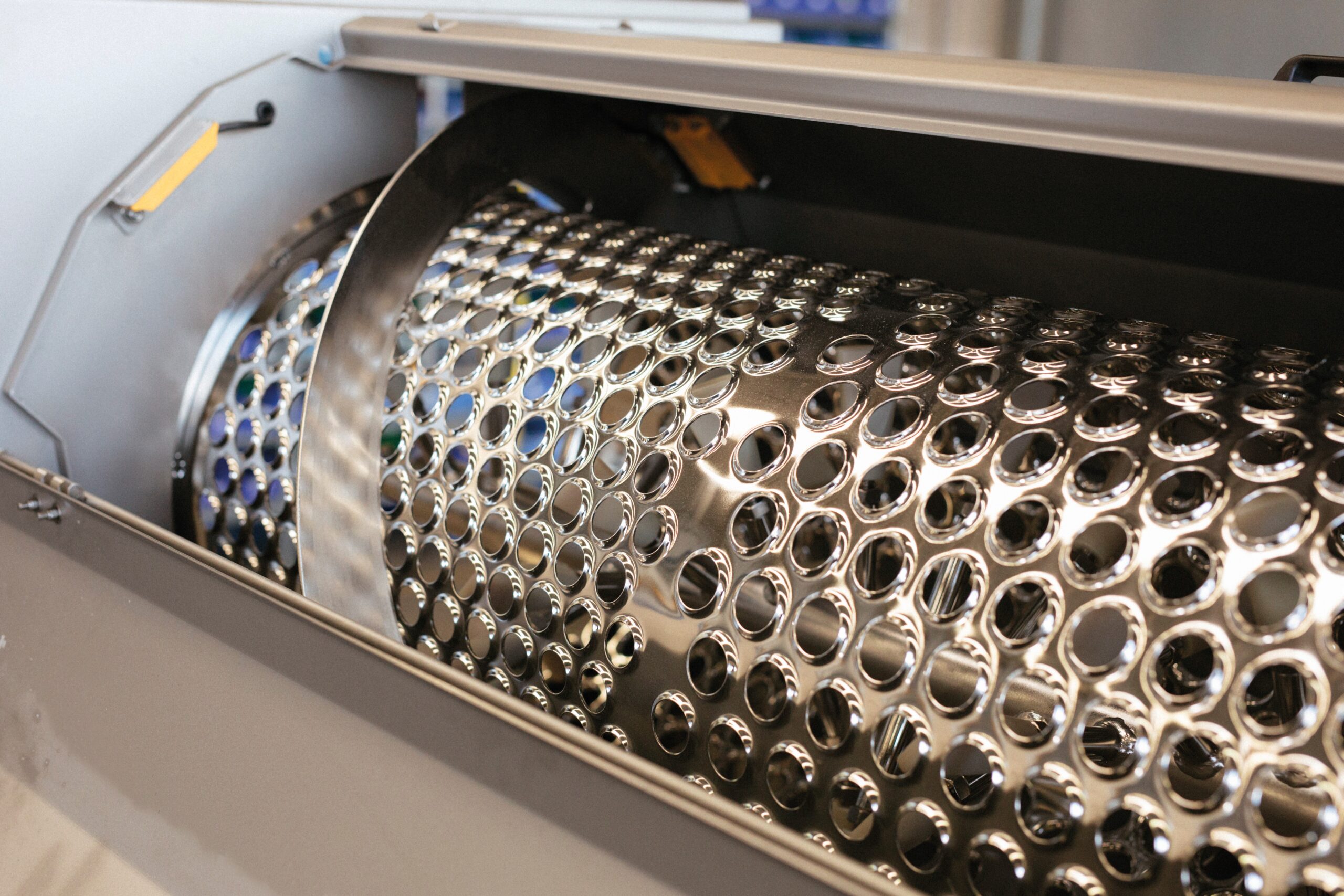

Additional stainless steel or polyethylene basket with different perforation patterns
Roller sorter

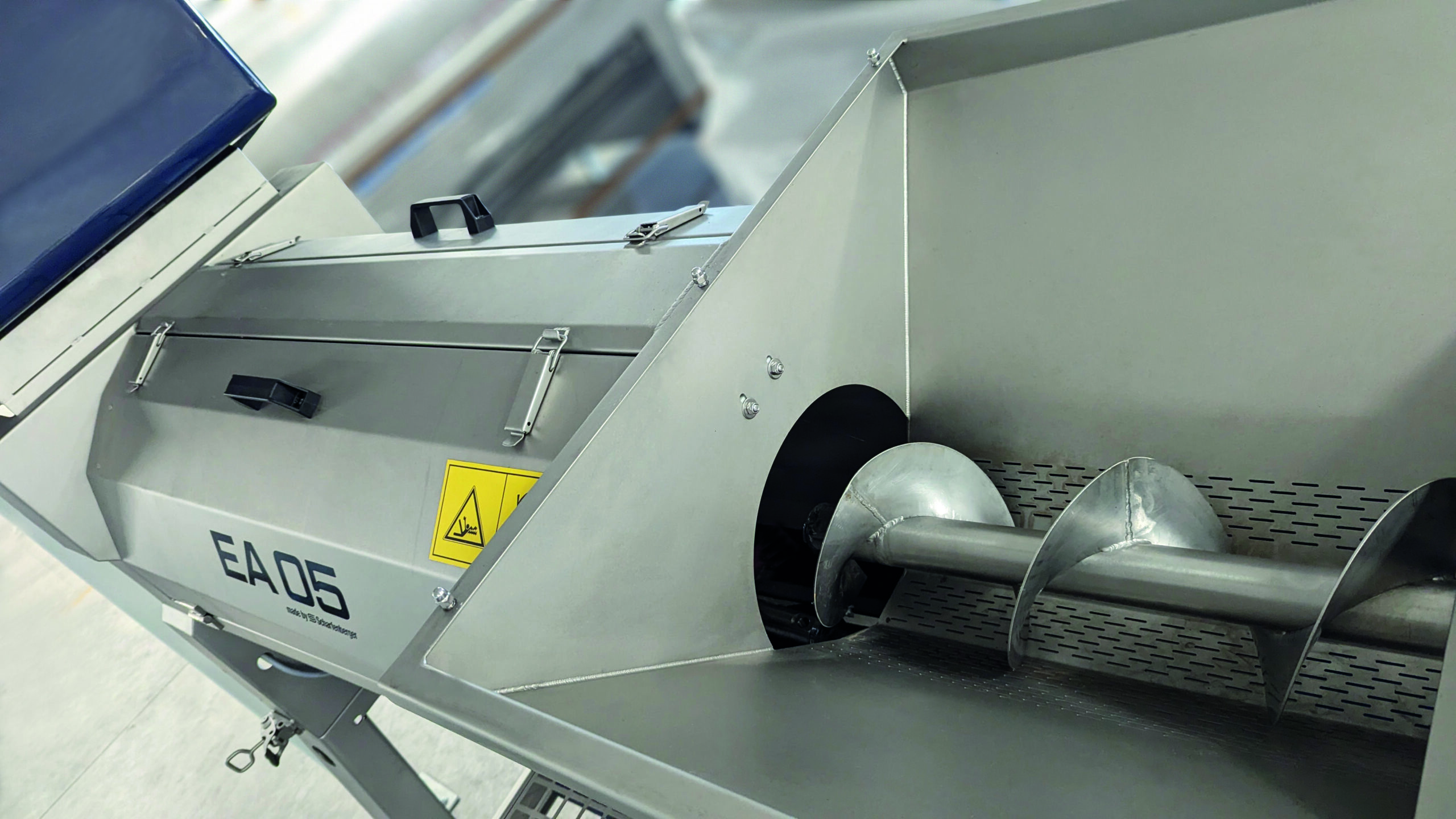

Feed hopper as standard, or large hopper options
Catwalk

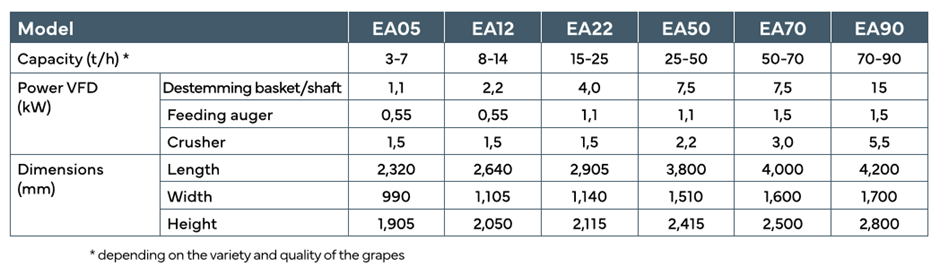

EA Sizes

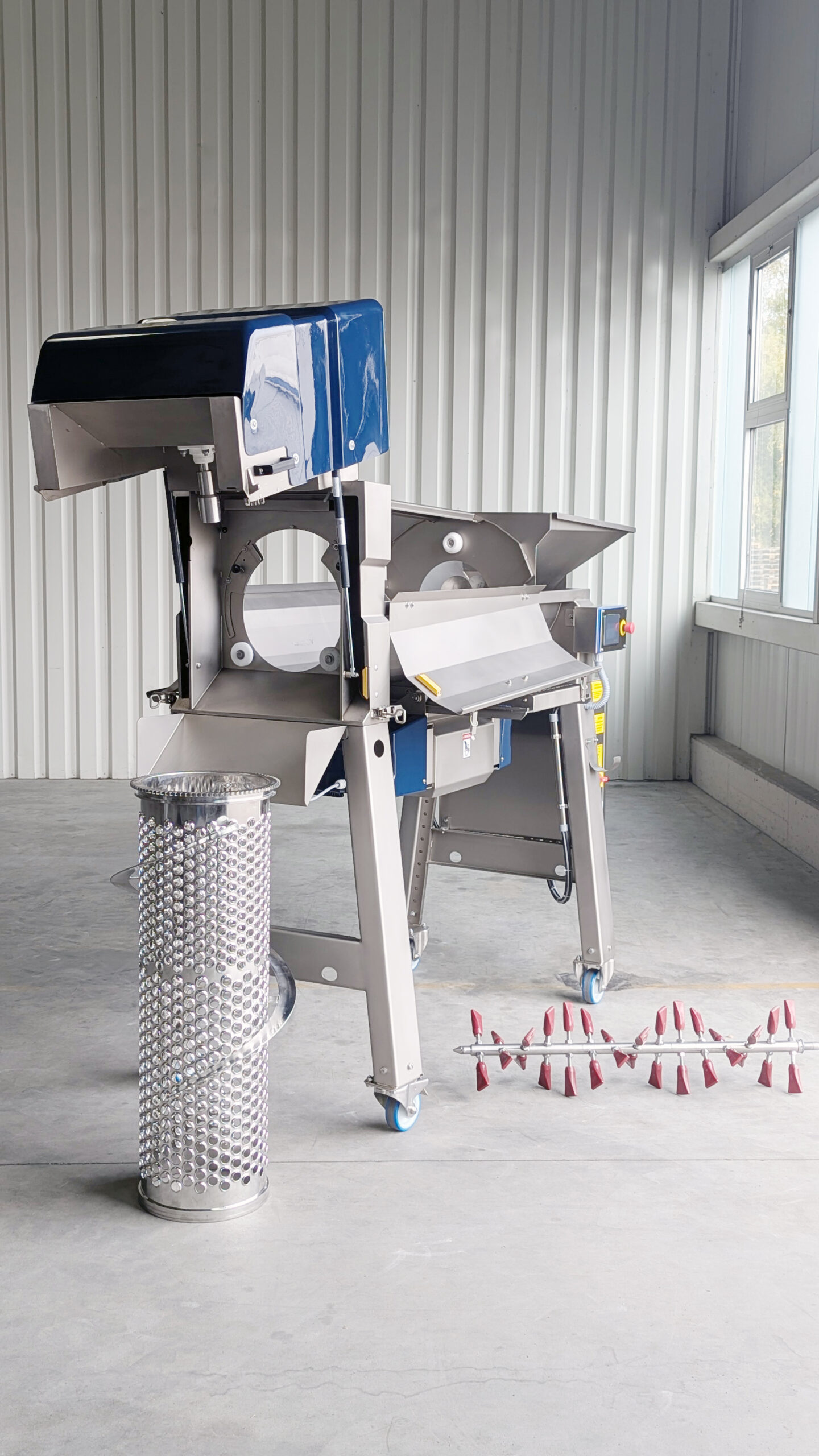

EA05, 3-7 tonnes per hour (t/PH)
EA12, 8-14 t/PH
EA22, 15-25 t/PH
EA50, 25-50 t/PH
EA70, 50-70 t/PH
EA90, 70-90 t/PH

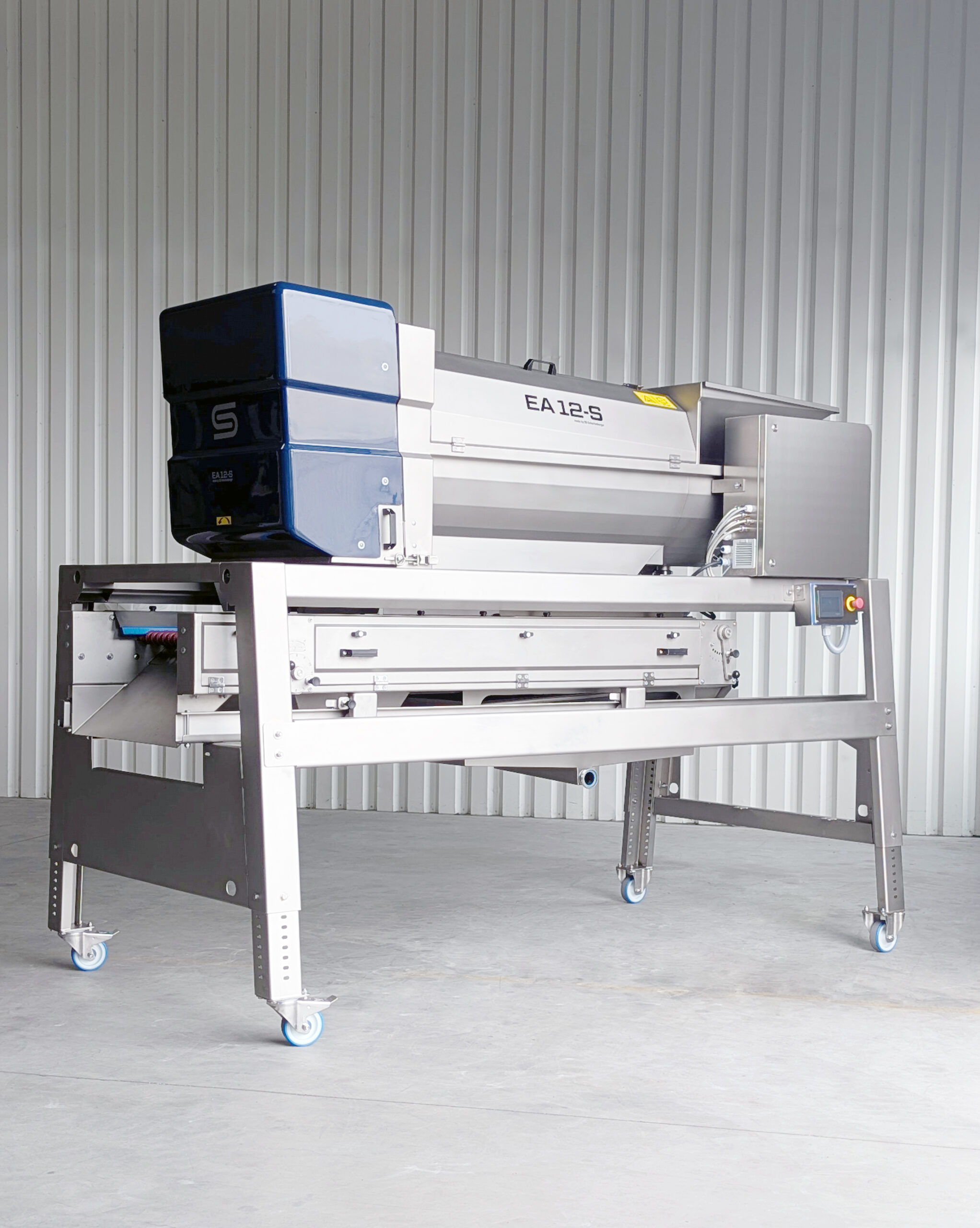

EA-S Range
S= Selective. Addition of an incorporated roller sorter!
Precisely separately adjustable speeds of the drive motors for the feeding auger, destemming basket, and destemming shaft allow for exact regulation of the destemming process.
The modular, movable roller sorter can be easily integrated. For higher performance requirements, such as with machine-harvested grapes, it can be quickly removed.

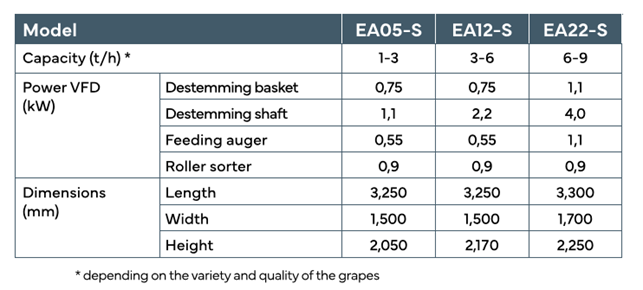

EQUIPMENT EA-S

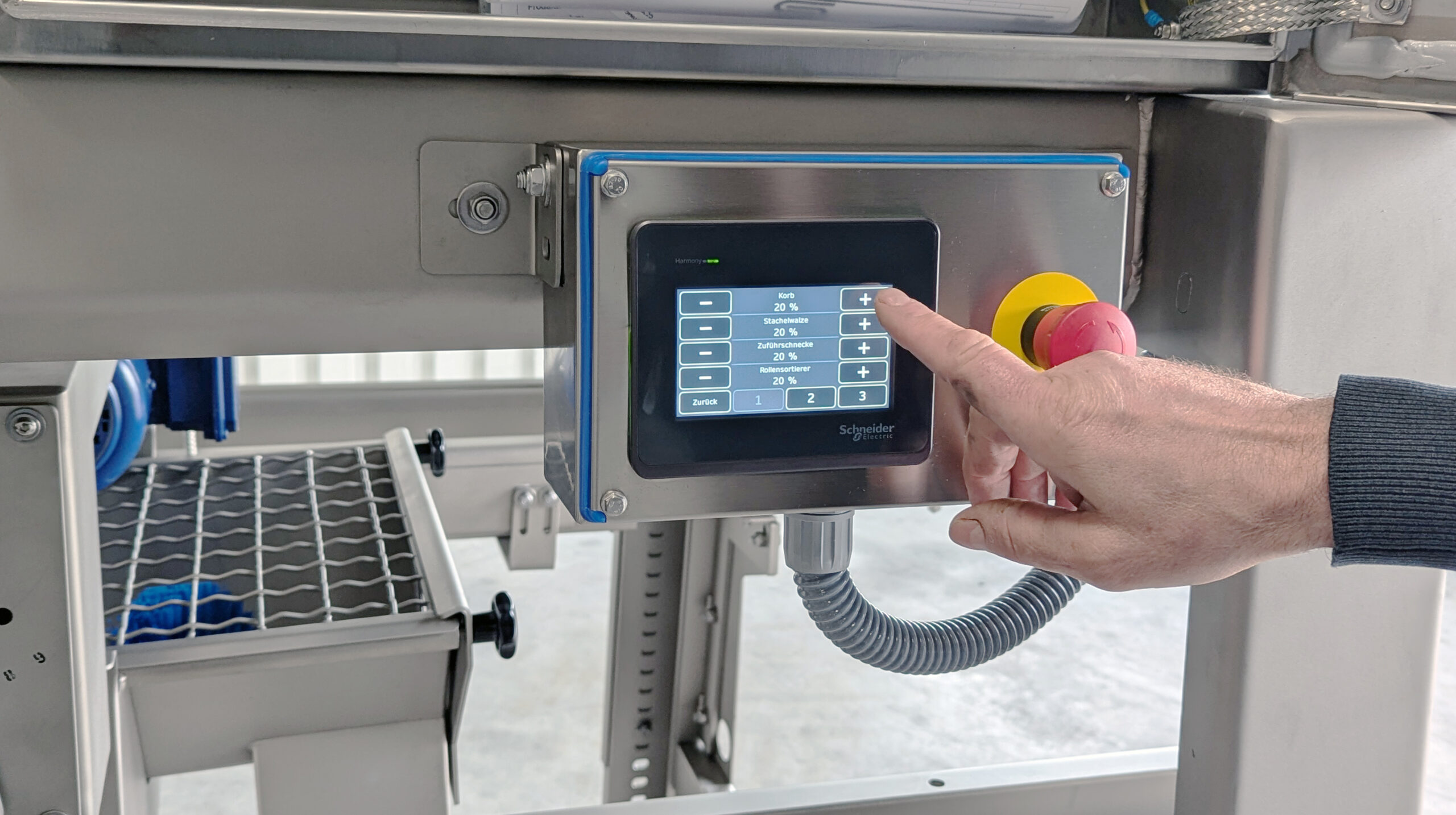

Various adjustable rotational speeds for feed screw, basket, shaft, and roller sorter

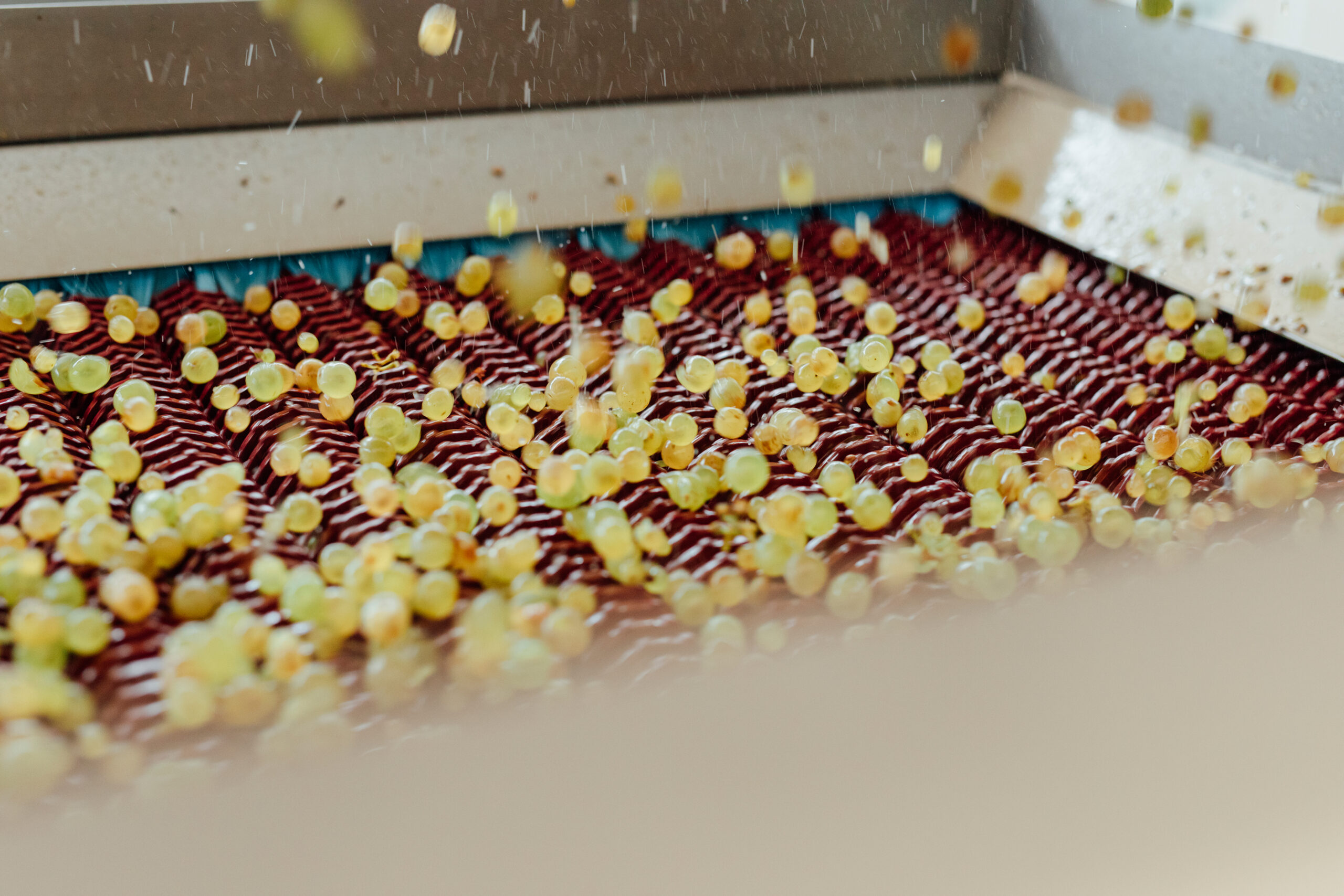

Roller sorter frequency-controlled and adjustable

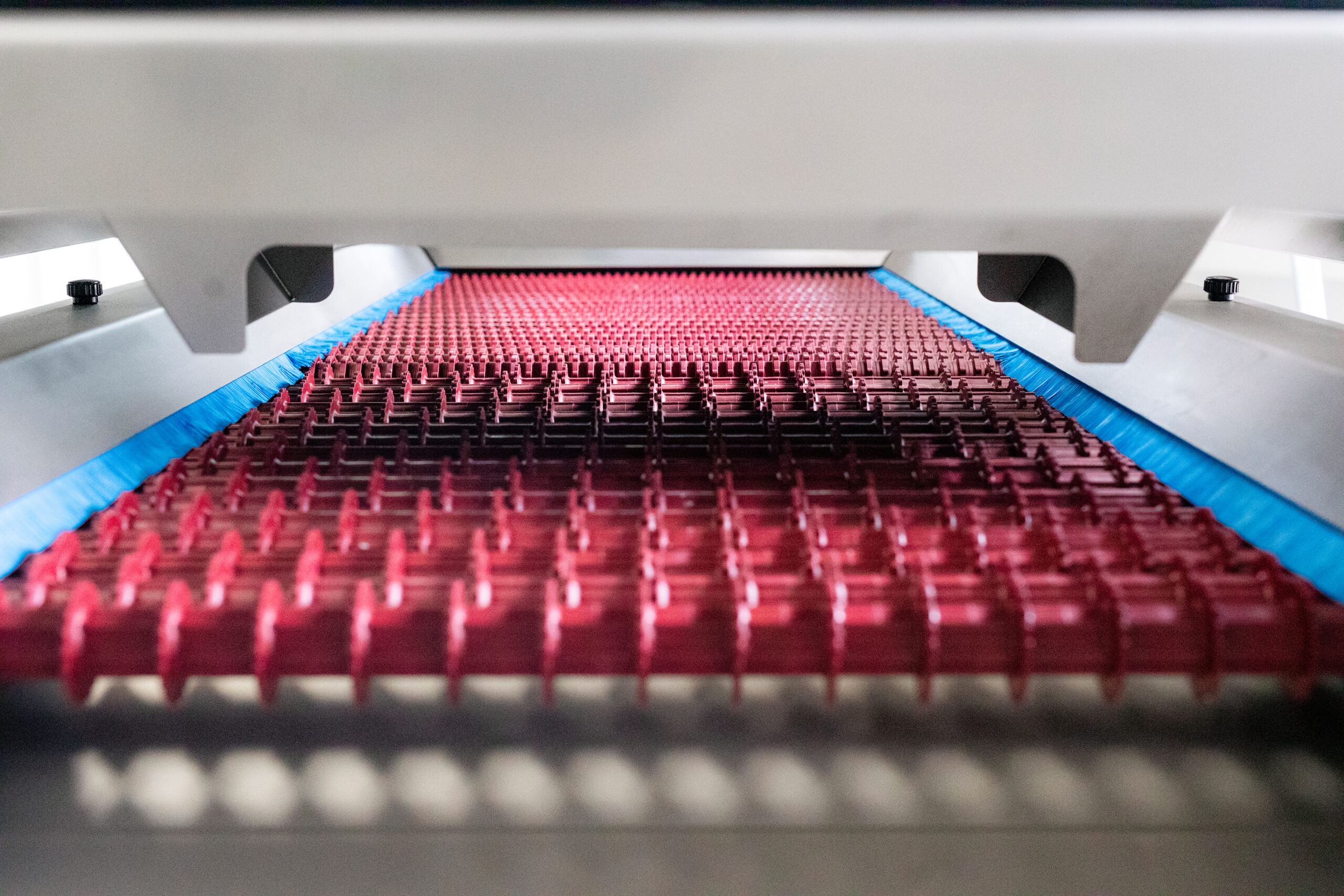

Closed rollers adjustable in spacing over the entire discharge length of the basket

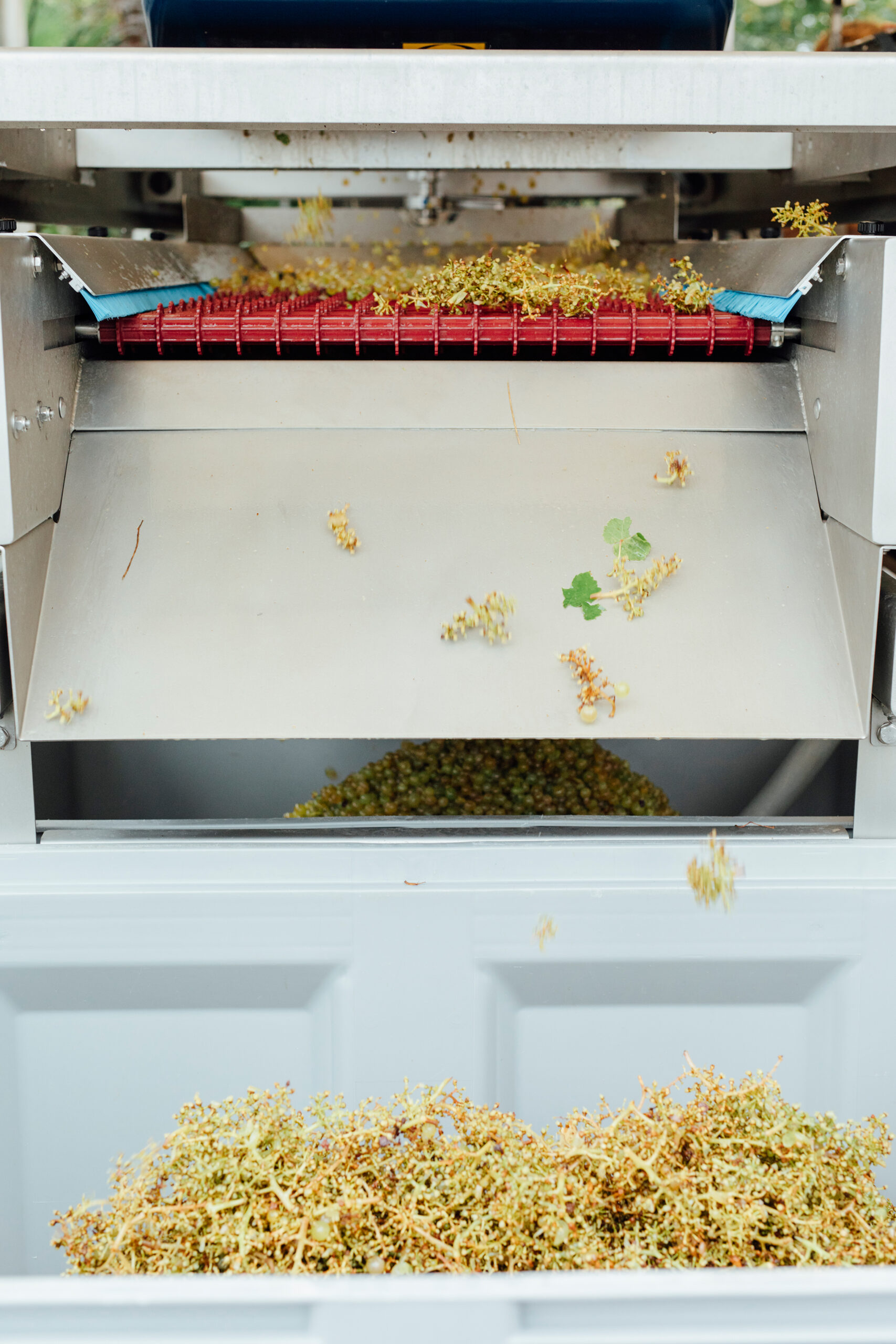

Grape discharge beneath the EA (open over the entire length)
Height adjustable underframe in stainless for a ground clearance or 620-1,060 mm
ADVANTAGES EA-S
Extremely gentle transition between the feed screw and finger roller
Low mechanical stress thanks to the gentle movement of the grapes
